Stacks and Queues in Data structure

An array is a random access data structure, where each element can be accessed directly and in constant time. A typical illustration of random access is a book - each page of the book can be open independently of others. Random access is critical to many algorithms, for example binary search.

A linked list is a sequential access data structure, where each element can be accesed only in particular order. A typical illustration of sequential access is a roll of paper or tape - all prior material must be unrolled in order to get to data you want.

In this note we consider a subcase of sequential data structures, so-called limited access data sturctures.

Stacks

Applications

• The simplest application of a stack is to reverse a word. You push a given word to stack - letter by letter - and then pop letters from the stack.
• Another application is an "undo" mechanism in text editors; this operation is accomplished by keeping all text changes in a stack.

  Backtracking. This is a process when you need to access the most recent data element in a series of elements. Think of a labyrinth or maze - how do you find a way from an entrance to an exit? Once you reach a dead end, you must backtrack. But backtrack to where? to the previous choice point. Therefore, at each choice point you store on a stack all possible choices. Then backtracking simply means popping a next choice from the stack.


• Language processing:
  • space for parameters and local variables is created internally using a stack.
  • compiler's syntax check for matching braces is implemented by using stack.
  • support for recursion

Implementation

In the standard library of classes, the data type stack is an adapter class, meaning that a stack is built on top of other data structures. The underlying structure for a stack could be an array, a vector, an ArrayList, a linked list, or any other collection. Regardless of the type of the underlying data structure, a Stack must implement the same functionality. This is achieved by providing a unique interface:

public interface StackInterface
{
   public void push(AnyType e);

   public AnyType pop();

   public AnyType peek();

   public boolean isEmpty();
}

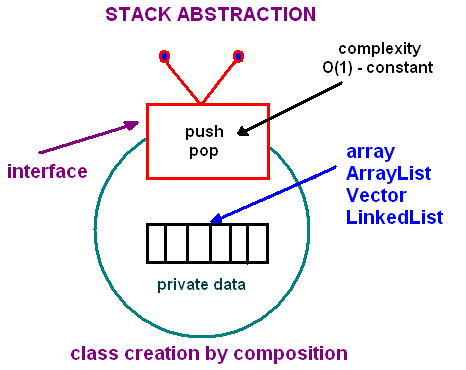

The following picture demonstrates the idea of implementation by composition.

Another implementation requirement (in addition to the above interface) is that all stack operations must run in constant time O(1). Constant time means that there is some constant k such that an operation takes k nanoseconds of computational time regardless of the stack size.

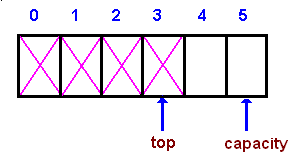

Array-based implementation

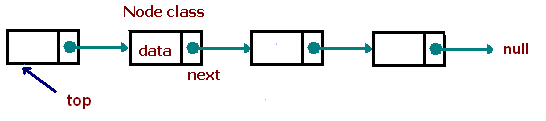

Linked List-based implementation

Queues

Implementation

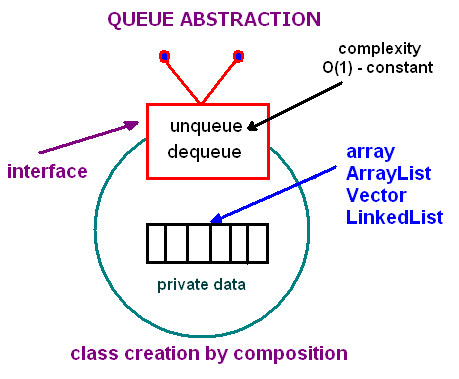

In the standard library of classes, the data type queue is an adapter class, meaning that a queue is built on top of other data structures. The underlying structure for a queue could be an array, a Vector, an ArrayList, a LinkedList, or any other collection. Regardless of the type of the underlying data structure, a queue must implement the same functionality. This is achieved by providing a unique interface.

interface QueueInterface‹AnyType>
{
   public boolean isEmpty();

   public AnyType getFront();

   public AnyType dequeue();

   public void enqueue(AnyType e);

   public void clear();
}

Each of the above basic operations must run at constant time O(1). The following picture demonstrates the idea of implementation by composition.

Circular Queue

Given an array A of a default size (≥ 1) with two references back and front, originally set to -1 and 0 respectively. Each time we insert (enqueue) a new item, we increase the back index; when we remove (dequeue) an item - we increase the front index. Here is a picture that illustrates the model after a few steps:

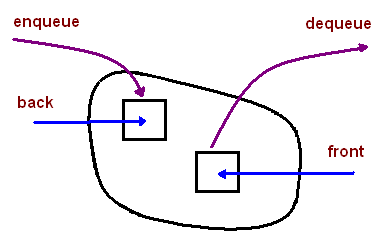

As you see from the picture, the queue logically moves in the array from left to right. After several moves back reaches the end, leaving no space for adding new elements

However, there is a free space before the front index. We shall use that space for enqueueing new items, i.e. the next entry will be stored at index 0, then 1, until front. Such a model is called a wrap around queue or a circular queue

Finally, when back reaches front, the queue is full. There are two choices to handle a full queue:a) throw an exception; b) double the array size.

The circular queue implementation is done by using the modulo operator (denoted %), which is computed by taking the remainder of division (for example, 8%5 is 3). By using the modulo operator, we can view the queue as a circular array, where the "wrapped around" can be simulated as "back % array_size". In addition to the back and front indexes, we maintain another index: cur - for counting the number of elements in a queue. Having this index simplifies a logic of implementation.

See ArrayQueue.java for a complete implementation of a circular queue.

Applications

The simplest two search techniques are known as Depth-First Search(DFS) and Breadth-First Search (BFS). These two searches are described by looking at how the search tree (representing all the possible paths from the start) will be traversed.

Deapth-First Search with a Stack

In depth-first search we go down a path until we get to a dead end; then we backtrack or back up (by popping a stack) to get an alternative path.

• Create a stack
• Create a new choice point
• Push the choice point onto the stack
• while (not found and stack is not empty)
  • Pop the stack
  • Find all possible choices after the last one tried
  • Push these choices onto the stack
• Return

Breadth-First Search with a Queue

In breadth-first search we explore all the nearest possibilities by finding all possible successors and enqueue them to a queue.

• Create a queue
• Create a new choice point
• Enqueue the choice point onto the queue
• while (not found and queue is not empty)
  • Dequeue the queue
  • Find all possible choices after the last one tried
  • Enqueue these choices onto the queue
• Return

We will see more on search techniques later in the course.

Arithmetic Expression Evaluation

An important application of stacks is in parsing. For example, a compiler must parse arithmetic expressions written using infix notation:

1 + ((2 + 3) * 4 + 5)*6

We break the problem of parsing infix expressions into two stages. First, we convert from infix to a different representation called postfix. Then we parse the postfix expression, which is a somewhat easier problem than directly parsing infix.

Converting from Infix to Postfix. Typically, we deal with expressions in infix notation

2 + 5

where the operators (e.g. +, *) are written between the operands (e.q, 2 and 5). Writing the operators after the operands gives a postfix expression 2 and 5 are called operands, and the '+' is operator. The above arithmetic expression is called infix, since the operator is in between operands. The expression

2 5 +

Writing the operators before the operands gives a prefix expression

+2 5

Suppose you want to compute the cost of your shopping trip. To do so, you add a list of numbers and multiply them by the local sales tax (7.25%):

70 + 150 * 1.0725

Depending on the calculator, the answer would be either 235.95 or 230.875. To avoid this confusion we shall use a postfix notation

70  150 + 1.0725 *

Postfix has the nice property that parentheses are unnecessary.

Now, we describe how to convert from infix to postfix.

1. Read in the tokens one at a time
2. If a token is an integer, write it into the output
3. If a token is an operator, push it to the stack, if the stack is empty. If the stack is not empty, you pop entries with higher or equal priority and only then you push that token to the stack.
4. If a token is a left parentheses '(', push it to the stack
5. If a token is a right parentheses ')', you pop entries until you meet '('.
6. When you finish reading the string, you pop up all tokens which are left there.
7. Arithmetic precedence is in increasing order: '+', '-', '*', '/';

Example. Suppose we have an infix expression:2+(4+3*2+1)/3. We read the string by characters.

'2' - send to the output.
'+' - push on the stack.
'(' - push on the stack.
'4' - send to the output.
'+' - push on the stack.
'3' - send to the output.
'*' - push on the stack.
'2' - send to the output.

Evaluating a Postfix Expression. We describe how to parse and evaluate a postfix expression.

1. We read the tokens in one at a time.
2. If it is an integer, push it on the stack
3. If it is a binary operator, pop the top two elements from the stack, apply the operator, and push the result back on the stack.

Consider the following postfix expression

5 9 3 + 4 2 * * 7 + *

Here is a chain of operations

Stack Operations              Output
--------------------------------------
push(5);                        5
push(9);                        5 9
push(3);                        5 9 3
push(pop() + pop())             5 12
push(4);                        5 12 4
push(2);                        5 12 4 2
push(pop() * pop())             5 12 8
push(pop() * pop())             5 96
push(7)                         5 96 7
push(pop() + pop())             5 103
push(pop() * pop())             515

Note, that division is not a commutative operation, so 2/3 is not the same as 3/2.

ArrayStack

/*****************************************************************************
 * An array implementation of a stack.
 *
 *****************************************************************************/

@SuppressWarnings("unchecked")
public class ArrayStack implements StackInterface
{
   private static final int DEFAULT_CAPACITY = 15;
   private int top;       // reference to the top element
   private AnyType[] A;

 /**
   * Creates a Stack of the size initialCapacity
   */
   public ArrayStack(int initialCapacity)
   {
      if (initialCapacity <= 0)
         A = (AnyType[]) new Object[DEFAULT_CAPACITY];
      else
         A = (AnyType[]) new Object[initialCapacity];

      top = -1;   //stack is empty
   }

 /**
   * Creates a Stack with the default capacity
   */
   public ArrayStack()
   {
      this(DEFAULT_CAPACITY);
   }

 /**
   * Tests if the stack is empty.
   */
   public boolean isEmpty()
   {
      return top==-1;
   }

 /**
   * Returns the top item without its removal.
   */
   public AnyType peek()
   {
      if (isEmpty())  throw new StackException("Stack is empty");
      return A[top];
   }

 /**
   * Removes and returns the item at the top of this stack.
   */
   public AnyType pop()
   {
      AnyType x = peek();
      A[top] = null;    //make sure the object is destroyed
      top--;
      return x;
   }

 /**
   * Inserts an item onto the top of the stack.
   */
   public void push(AnyType e)
   {
      if (top == A.length) throw new StackException("Stack has overflowed");
		top++;
      A[top] = e;
   }

 /**
   * Removes all items from the Stack.
   */
   public void clear()
   {
      for(int i = 0; i <= top; i++)
         A[i] = null;

      top = -1;
   }

 /**
   * Returns a string representation of the Stack.
   */
   public String toString()
   {
      if(isEmpty()) return "[ ]";

      StringBuffer out = new StringBuffer("[");
      for(int i = 0; i < top; i++)
         out.append(A[i] + ", ");

      out.append(A[top] + "]");
      return out.toString();
   }

   public static void main(String[] args)
   {
      ArrayStack s = new ArrayStack(6);

      try
      {

         for(int i = 0; i < 6; i++) s.push(i);

         //s.clear();
         System.out.println(s);

         for(int i = 0; i < 5; i++) s.pop();

         System.out.println(s);

      }
      catch (StackException e)
      {
         System.err.println(e);
      }
   }
}



	/**              StackInterface           **/

interface StackInterface
{
 /**
   * Tests if the stack is empty.
   */
   public boolean isEmpty();

 /**
   *  Removes and returns the item at the top of this stack.
   */
   public AnyType pop() throws StackException;

 /**
   *  Returns the top item without its removal
   */
   public AnyType peek() throws StackException;

 /**
   * Inserts an item onto the top of the stack.
   */
   public void push(AnyType e) throws StackException;

 /**
   * Removes all items from the stack.
   */
   public void clear();
}


	/**              StackException           **/


class StackException extends RuntimeException
{
   public StackException(String name)
   {
      super(name);
   }

   public StackException()
   {
      super();
   }
}

ListStack

/*****************************************************************************
 * A linked list-based implementation of a stack.
 *
 *****************************************************************************/

public class ListStack implements StackInterface
{
    private Node top;

 /**
   * Creates a Stack
   */
    public ListStack( )
    {
        top = null;
    }

    /**
     * Tests if the stack is empty.
     */
    public boolean isEmpty( )
    {
        return top == null;
    }

    /**
     * Make the stack logically empty.
     */
    public void clear( )
    {
        top = null;
    }

    /**
     * Inserts a new item into the stack.
     */
    public void push(AnyType data)
    {
        top = new Node(data, top);
    }

    /**
     *  Removes and returns the item at the top of this stack.
     */
    public AnyType pop( )
    {
        if(isEmpty( )) throw new StackException("Stack is empty");
        AnyType data = top.data;
        top = top.next;
        return data;
    }

    /**
     *  Returns the top item without its removal
     */
    public AnyType peek( )
    {
        if(isEmpty( ))  throw new StackException("Stack is empty");
        return top.data;
    }

    /**
     * Returns a string representation of the Stack.
     */
   public String toString()
   {
      if(isEmpty()) return "[ ]";

      StringBuffer out = new StringBuffer("[");
      Node tmp = top;
      while(tmp != null)
      {
         out.append(tmp.data + "  ");
         tmp = tmp.next;
      }

      out.append("]");
      return out.toString();
   }

   private static class Node
   {
      public AnyType data;
      public Node next;

      public Node(AnyType data)
      {
         this(data, null );
      }

      public Node(AnyType data, Node n)
      {
         this.data = data; next = n;
      }
   }

   public static void main(String[] args)
   {
      ListStack s = new ListStack();

      try
      {

         for(int i = 0; i < 6; i++) s.push(i);

         //s.clear();
         System.out.println(s);

         for(int i = 0; i < 5; i++) s.pop();

         System.out.println(s);

      }
      catch (StackException e)
      {
         System.err.println(e);
      }
   }
}



	/**              StackInterface           **/

interface StackInterface
{
 /**
   * Tests if the stack is empty.
   */
   public boolean isEmpty();

 /**
   *  Removes and returns the item at the top of this stack.
   */
   public AnyType pop() throws StackException;

 /**
   *  Returns the top item without its removal
   */
   public AnyType peek() throws StackException;

 /**
   * Inserts an item onto the top of the stack.
   */
   public void push(AnyType e) throws StackException;

 /**
   * Removes all items from the stack.
   */
   public void clear();
}


	/**              StackException           **/


class StackException extends RuntimeException
{
   public StackException(String name)
   {
      super(name);
   }

   public StackException()
   {
      super();
   }
}

ArrayQueue

/*****************************************************************************
 * This is an implementation of a dynamic wraparound queue structure.
 * It implements the Iterator interface for traversing the queue..
 *****************************************************************************/

import java.util.*;

@SuppressWarnings("unchecked")
public class ArrayQueue implements  QueueInterface, Iterable
{
	private static final int DEFAULT_CAPACITY = 10;
	private int cap,	// total number of elements in the queue
                  cur,		// current number of elements
                  front,  	// front index
                  back;		// back index
	private AnyType[] A;

	/**
	*  Creates a new empty queue.
	*/
	public ArrayQueue ()
	{
		cap = DEFAULT_CAPACITY;
		A = (AnyType[]) new Object[DEFAULT_CAPACITY];
		back = -1; front = 0;
	}

	/**
	*  Tests if the queue is logically empty.
	*
	*  @return true if the queue is empty and false otherwise
	*/
	public boolean isEmpty()
	{
		return cur == 0;
	}

	/**
	*  Puts a value into the back of the queue. It works with wraparound.
	*  If the queue is full, it doubles its size.
	*
	*  @param value the item to insert.
	*/
	public void enqueue (AnyType value)
	{
		if (isFull()) doubleSize();

		back++;
		A[back%cap] = value;
		cur++;
	}

	/**
	*  Returns the first element in the queue.
	*
	*  @return element at front of the queue
	*  @throws NoSuchElementException if the queue is empty.
	*/
	public AnyType getFront()
	{
		if (isEmpty())
			throw new QueueException();
		else
			return A[front%cap];
	}

	/**
	*  Returns and removes the front element of the queuee. It works with wraparound.
	*
	*  @return element at front of the queue
	*  @throws NoSuchElementException if the queue is empty.
	*/
	public AnyType dequeue()
	{
		AnyType e = getFront();
		A[front%cap] = null; // for garbage collection
		front++;
		cur--;
		return e;
	}

	/**
	*  Makes the queue physically empty.
	*
	*/
	public void clear()
	{
		for(int i = 0; i < cap; i++) A[i] = null;

		cur = 0; back = -1; front = 0;
	}

	/**
	*  Tests if the queue is logically full
	*/
	public boolean isFull()
	{
		return cur == cap;
	}

	/**
	*  Increase the queue capacity by doubling the size.
	*/
	private void doubleSize()
	{
		AnyType[] newArray = (AnyType[]) new Object[2*cap];

		//copy items
		for(int i = front; i <= back; i ++)
			newArray[i-front] = A[i%cap];

		A = newArray;
		front = 0;
		back = cur-1;
		cap *= 2;
	}

 /***************    Iterator      *************** */

	/**
	* Obtains an Iterator object used to traverse the Queue from its front to back.
	*
	* @return an iterator.
	*
	* @throws UnsupportedOperationException if you remove using the iterator
	*/
	public Iterator iterator( )
	{
		return new QueueIterator( );
	}

	private class QueueIterator implements Iterator
	{
		private int index;      //traversal index


		/**
		*  Create a new empty iterator.
		*/
		public QueueIterator()
		{
			index = front;
		}

		/**
		*  Tests if there are more items in the Queue
		*
		*/
		public boolean hasNext( )
		{
			return index <= back;
		}

		/**
		*  Returns the next item in the Queue.
		*
		*/
		public AnyType next( )
		{
			return A[(index++)%cap];
		}

		/**
		*  Remove is not implemented
		*
		*/
		public void remove( )
		{
			throw new java.lang.UnsupportedOperationException();
		}
	}

	public static void main(String[] args)
	{
		ArrayQueue Q = new ArrayQueue();

		String[] people = {"Tom", "Jay", "Pat", "Meghan", "Tom", "Mark","Kasey","John",
		"Helen"};

		for (int i = 0; i < people.length; i++)
			Q.enqueue(people[i]);

		for (int i = 0; i < 2; i++) Q.dequeue();

		Iterator itr = Q.iterator();
		while(itr.hasNext())
			System.out.println(itr.next());

		System.out.println("=================");

		Q.enqueue("Mike");
		Q.enqueue("Bev");

		itr = Q.iterator();
		while(itr.hasNext())
			System.out.print(itr.next() + " ");

		System.out.println();
   }
}

	/**              QueueInterface           **/

interface QueueInterface
{
	/**
	* Tests if the Queue is empty.
	*/
	public boolean isEmpty();

	/**
	*  Removes and returns the front item
	*/
	public AnyType dequeue() throws QueueException;

	/**
	*  Returns the front item without its removal
	*/
	public AnyType getFront() throws QueueException;

	/**
	* Inserts an item to teh back
	*/
	public void enqueue(AnyType e);

	/**
	* Removes all items from the Queue.
	*/
	public void clear();
}


	/**              QueueException           **/


class QueueException extends RuntimeException
{
	public QueueException(String name)
	{
		super(name);
	}

	public QueueException()
	{
		super();
	}
}
